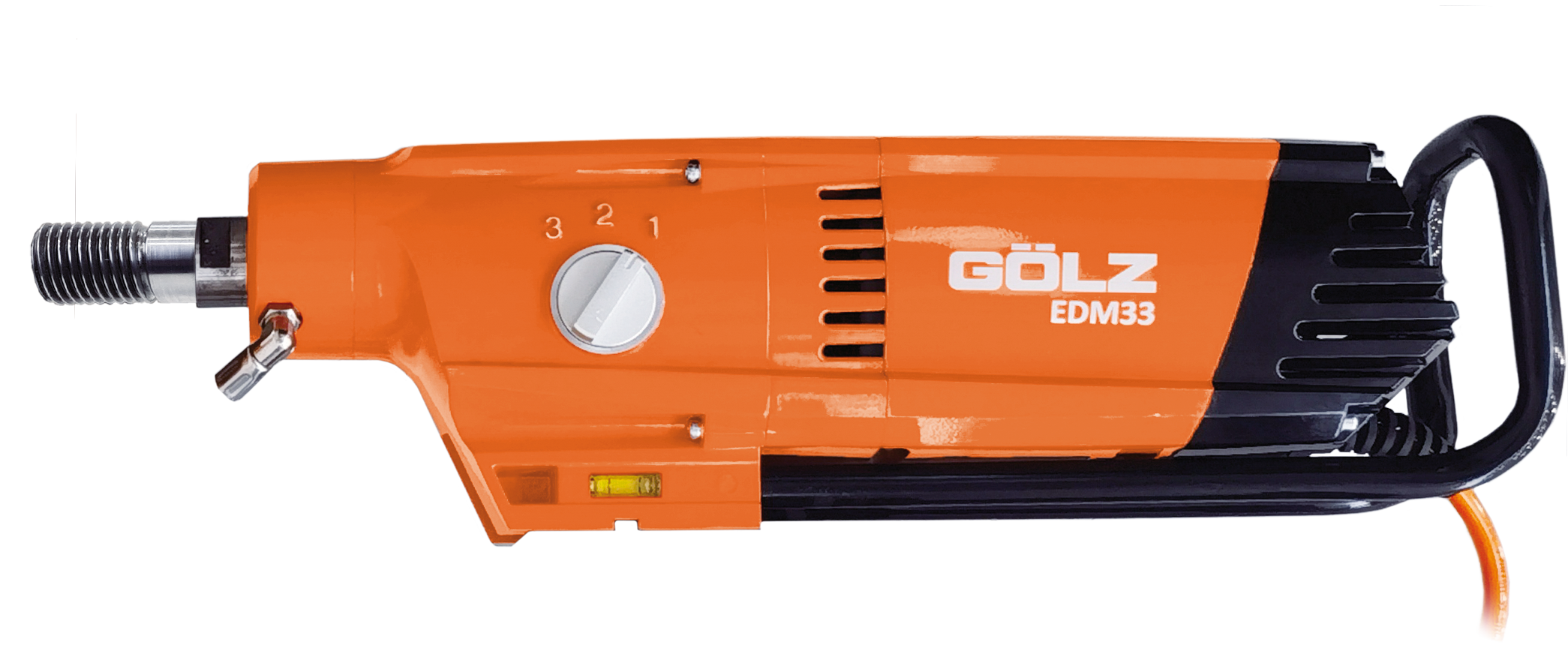

SD300 | EDM33
Lightweight and professional core drilling
machine for holes up to Ø 300 mm(12")
in building and construction industry
machine for holes up to Ø 300 mm(12")
in building and construction industry
-
Max. Drill-Ø300 mm
-
Travel Length650 mm
-
Baseanchor-/vacuum base
-
Motor3-speed, 3,3 kW, 230V
ltem number: EDM33 0295 250 9125 / SD300 0295 250 9010
-
FEATURES
![Laser pinter]()

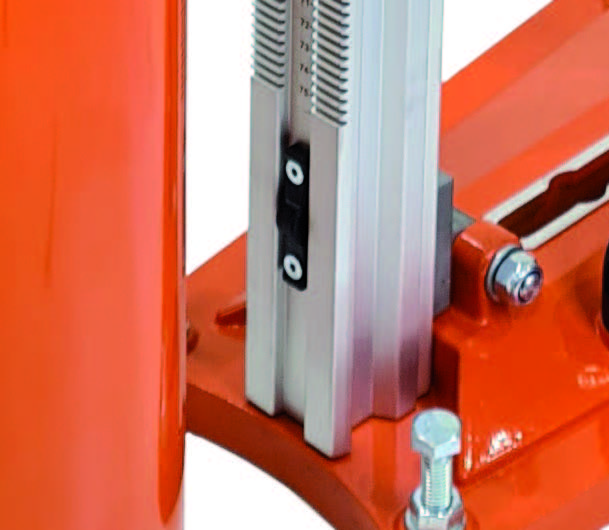

Laser pinter![LED display against overload]()

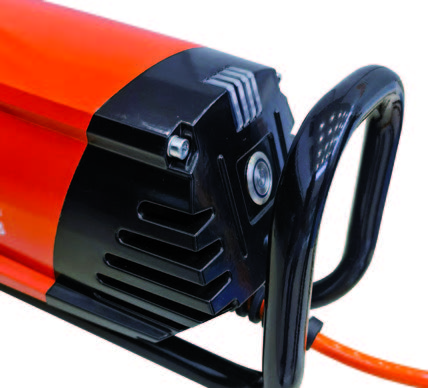

LED display against overload -
TECH DATA TABLEUser friendly and lightweight
High Power drilling machine with professional 3,3 kW motor and slider guide carriage
• Light metall Drill Stand 17,8 kg (39,2 lbs)
• Drill motor 13,2 kg (29 lbs)
• Travel length: 650 mm (25")
• Maximum diameter: 300 mm (12")
• Angle drilling device up to 45°
• Smooth-running sliding guide
• Left and right handed operation
• Motor quick release system
• Anchor-/vacuum base
• Tool- and fastening kit included
SD300 with anchor-/vacuum base Drill bit connection 1¼” UNC Complete with EDM33 Power 3300 W, 230 V, 50-60 Hz RPM 180/430/750 min-1 Drilling Ø Ø 45-300 mm Order number 0295 250 9125 Drill Stand SD300 without drill motor with tool kit (without fastening kit), anchor-/vacuum base,
Weight 17,8 kg, up to Ø 300 mm (12")
Order number 0295 250 9010 -
Matching machines
-
Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
